YDS100

Ultra-low power 4G solar PTZ securi(YDS100)

Ultra-low power 4G solar PTZ securi
(YDS100)

20W splicing solar panels,Support All-in-One installation and separated installation.

Smart dual working mode: 24 hours recording + motion detection recording .

Built-in high capacity Li-ion battery 30,000mAh, support 7days/24hours.

PIR Human detection + AI Human shape detection.

High-performance ISP and 1/2.7" progressive sensor, blacklight full color.

1920*1080P HD video.

Built-in microphone and loudspeaker,support two way audio.

Support cloud storage and local TF card storage.

Built-in Alarm Siren.

Metal material housing,IP65 waterproof.

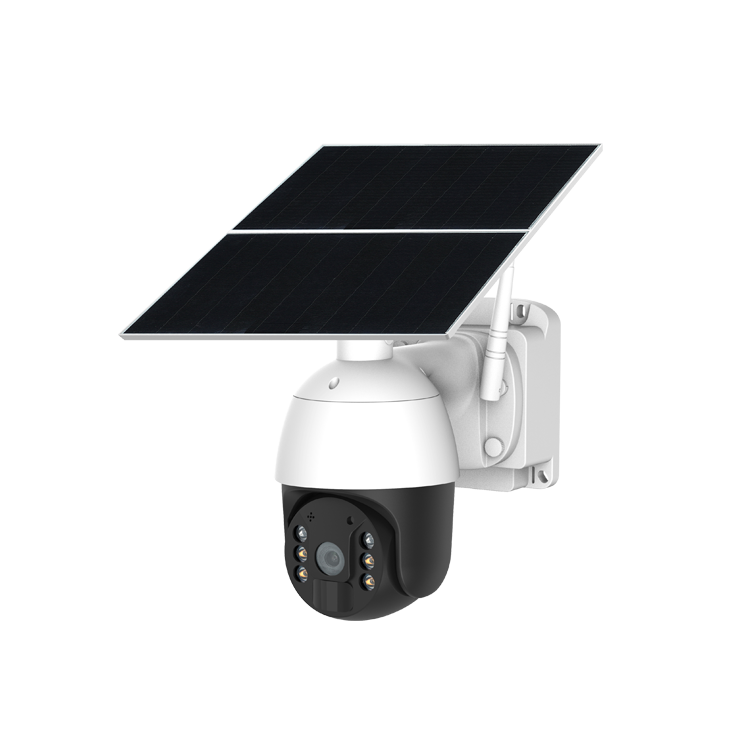

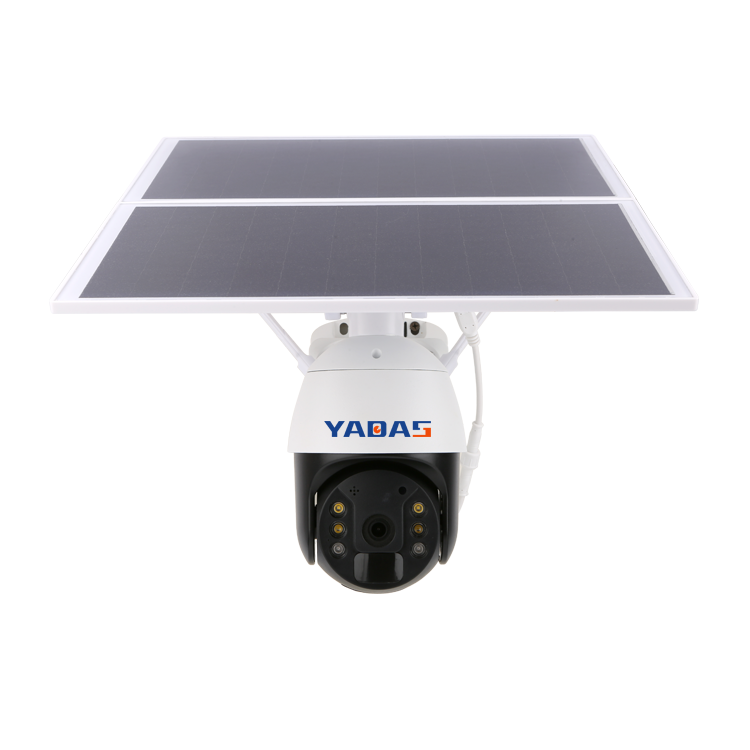

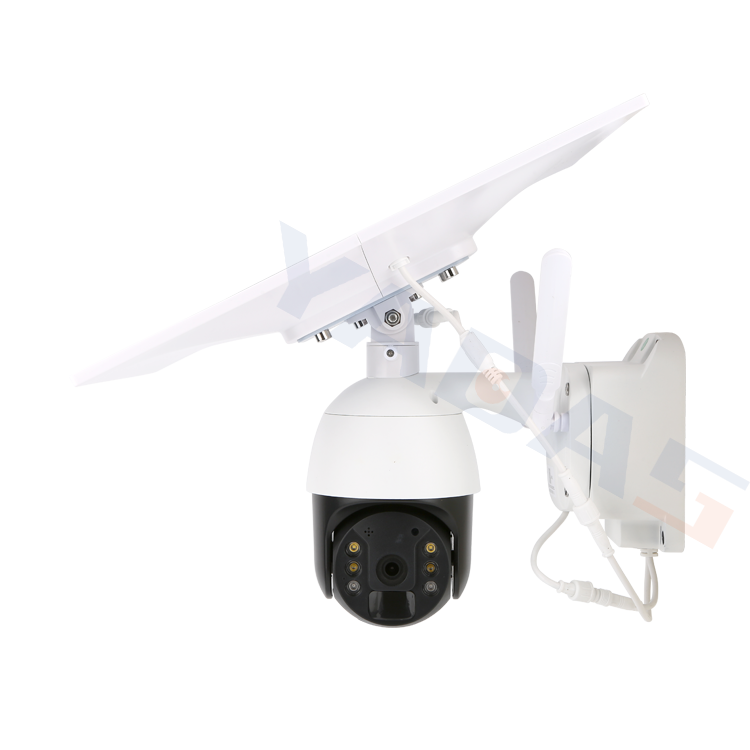

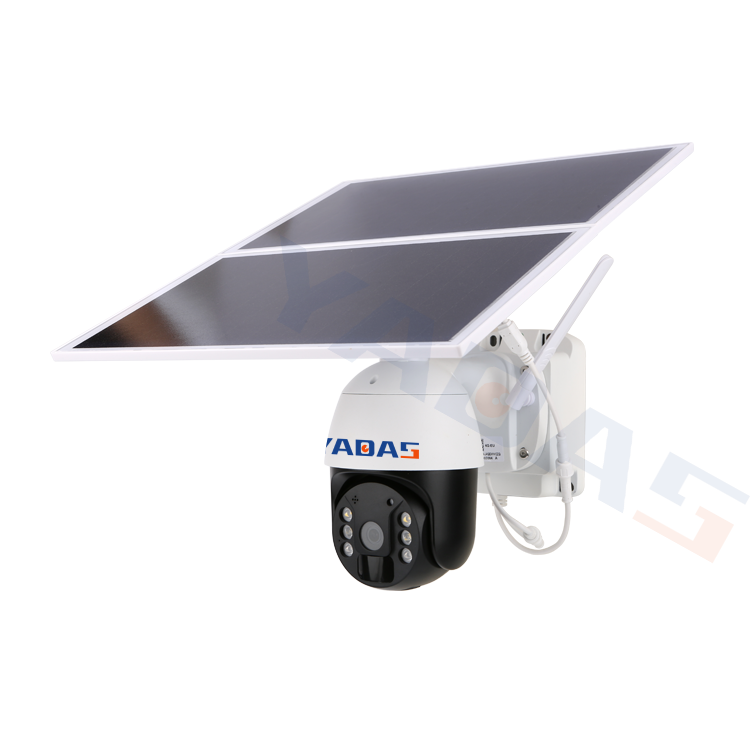

Ultra-low power 4G solar PTZ security camera
MODEL		YDS100-4G
General	PT control/Speed	PAN 355 ° Tilt 120° / Pan 55°/s Tilt 40°/s
	APP	Android, IOS
	Max working power	4W
	Standby power	0.004W
	Compression	H.265
	Pixel	1920*1080 1080P
	Connecting	TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD
	Operation Environment	-20°~60°C
	Material	Metal
	Waterproof	IP65
Camera	Chips	T31ZL
	Sensor	1/2.7″ CMOS Sensor GC2063
	Lens/View Angle	3.6MM / F2.0 / 110°
	Night Vision	2xLED IR distance 30M (IR night vision)
	Night Vision	4xLED warm lights distance 30M (HD starlight full color night vision)
	Alarm Notification	Mobile realtime calling or push message
	Alarm Siren	Support
	PIR Detection	angle:120° distance:up to 30 feet(10 meters)
	Built-in Micro/Speaker	pick up distance 5 meters; built-in speaker, power 1W
	Audio	two-way audio
	Video format	1920*1080/15fps;640x360/15fps
	Battery Capacity	Built-in 6*21700 battery 30,000mAh
	Storage	TF card(max 128G)/ cloud storage
	Solar Panel	Splicing 2x10w to 20W
	Power Supply	solar power + 18650 battery
Packing	Color Box Size	265x202x167mm
	G.W/Color Box	1.75kg(with 8pcs battery)
	Carton Size/Qty	546x415x353mm/8pcs
	G.W/Carton	14.5kg
